[j0ntz]

Technical Design Document

ctx-spend-pubkey-auth.md

CHANGELOG

Does this branch warrant an entry to the CHANGELOG?

• Yes
• No

Dependencies

none

Description

Asana: https://app.asana.com/0/1215088146871429/1216403654258326

CTX published a reference script for an anonymous secp256k1 register/login protocol against their spend-api (CTX-com/spend-api-pubkey-auth-demo). This is a prototype client for that protocol, wired into the existing EdgeSpend gift card plugin.

GET /me against CTX returns gift-card-scoped permissions (giftcard:create, giftcard:list, giftcard:redeem, merchant:list) and GET /merchants returns a 118-entry brand catalog, so CTX is a competing provider for what the Phaze plugin already does. The client is added alongside Phaze; the shipping purchase flow is untouched.

The design doc committed in this PR covers the protocol, the decisions, and the two places the reference script's crypto could not be ported verbatim: src/docs/ctx-spend-pubkey-auth.md.

What is here:

• ctxSpendPurchase.ts plus createGiftCard/getGiftCard — ordering a card and paying for it. POST /gift-cards returns the card already carrying a single-use payment address and a crypto amount quoted at rate; the client maps CTX's chain-and-network pair to an Edge currency plugin, converts the quote to native units with biggystring, and hands it to the ordinary send scene with the address, amount, and wallet tiles locked. The card is then polled until it reaches an end state.

• Chain coverage for every mainnet asset CTX quotes: BCH, BTC, DASH, ETH, LTC, XLM, XMR, ZANO and ZEC. Each chain code was read back from a real POST /gift-cards response, one order per cryptoCurrency, rather than transcribed from a currency list.

• A native-payment guard. A token quote splits the pair (paymentCryptoChain stays ETH while paymentCryptoCurrency becomes ETH.USDC), and both the wallet lookup and the native-unit conversion key off the chain alone, so a 0.010000 USDC quote would have resolved the ethereum wallet and sent 0.01 ETH for a one-cent card. isCtxNativePayment rejects it instead.

• CTX's documented status machine: unpaid, paid, fulfilled (terminal success), rejected (which can still move to refunded), refunded (terminal). rejected is a failure but deliberately not terminal, so it does not stop the poll. The poll now runs at 5s until paid and backs off to 30s afterwards, because fulfilment is the merchant's and can outlast the session.

• redeemUrl and barcodeUrl on the card. Redemption is not a path the client builds: a fulfilled card carries both URLs, each embedding its own JWT distinct from the session token. That is why a hand-built /gift-cards/{id}/barcode answers 401 token invalid for a session token every other route accepts.

• ctxSpendCrypto.ts — the protocol wire format: sha256(uint64BE(nonce)) digest, the 65-byte recoverable signature ([27 + recoveryId + 4] || R || S), public key recovery, and JWT expiry parsing. No React Native imports, so it is unit tested in Node.

• ctxSpendAuth.ts — the keypair is the CTX account. It is generated on first use and kept in the Edge account's encrypted dataStore, so the same anonymous CTX user is recovered across launches and devices. The reference script deliberately discards its keypair; a real client cannot. Tokens are derived state and are never persisted.

• ctxSpendApi.ts — the confirmed read surface (/me, /merchants, /gift-cards), with one re-auth retry on a 401.

• PLUGIN_API_KEYS.ctxSpend (clientId, baseUrl). There is no API key; the client id is registered server-side and the keypair identifies the user.

• A CTX section on the existing developer-facing gift card account info scene, so the session can be driven in the app.

Two substitutions the runtime forced, both covered in the doc's Decisions:

• No BigInt in the uint64 encoding. index.ts shims BigInt with big-integer when it is missing, and DataView.setBigUint64 rejects that shim.
• Request URLs are built by string, not via URL. React Native's URL appends a trailing slash to any query-less path, and the spend-api routes /me/ and /merchants/ to 404.

No new npm dependency: @noble/curves and @noble/hashes were already present, and are the same libraries the reference script uses.

Not in scope: replacing Phaze, following the redemption links (their shape is now known and modelled, but nothing opens them), a merchant-browsing UI, a shared provider interface over both APIs, and identity rotation.

Test plan

• 34 jest cases across ctxSpendCrypto, ctxSpendAuth and ctxSpendPurchase. The load-bearing one recovers the signing public key from the signature, which is the same check the server performs, so the wire format is verified without a network round trip. Vectors were cross-checked against Buffer.writeBigUInt64BE and node:crypto.
• verify-repo.sh passes: eslint, npm run prepare, and the full 536-case suite.
• Driven in-app on an iOS 18.6 simulator against https://staging.spend.ctx.com. The app generated its own keypair, registered it, and read live data: 12 permissions, 118 merchants, company Edge. The server named the anonymous user Anon 032129df after the public key's own prefix.
• Persistence checked by a full app stop and relaunch: the same user id and public key came back, so the keypair is reloaded from the encrypted store rather than regenerated.

End-to-end purchase, driven in-app on the sim against staging: ordered an Amazon card for USD 0.01, paid the quoted 0.0000052 ETH from the account's Sepolia wallet through the normal send flow, and watched CTX move the card to paid. Card 5d2964f9-3641-450e-8d77-e9f178b5b1da.

Every staging quote is testnet (Monero on stagenet, Zcash/BTC/LTC/BCH/DASH/XLM/ZANO on theirs, ETH on Sepolia), and Sepolia is the only testnet Edge ships a wallet for, so ETH is the one rail the app can pay against staging. The mainnet rows of the chain table are therefore unexercised: CTX's production endpoint exists but does not yet permit pubkey auth for our client (400 authentication method not allowed for this client on the first POST /login leg, against a 200 from the identical request to staging).

Re-driven end to end after those changes: ordered another Amazon card at USD 0.01, paid 0.000004 ETH from the Sepolia wallet, and watched CTX move it to paid. Card 99f59d44-216c-4a0f-b620-27cdfed996d1. The redemption-link rows cannot be reached naturally, since staging never fulfils a card, so that frame was captured under a forced card state and is labelled as such in the evidence comment.

Screenshots in the test-evidence comments below.

Bugbot found 6 issues across three rounds, all fixed and re-tested on the sim. Four were in the first round: a dataStore read failure reading as "no identity" and silently minting a replacement keypair (the worst of them, since CTX has no recovery), malformed stored hex throwing past the replace path, a light-account status conflated with a failed write, and Connect not being retryable. The retry fix then surfaced two follow-ons it had created or exposed: an ungated button that could stack sessions, and the app-wide retry: 2 turning one failed connect into three login handshakes against a rate-limited API. Decision 8.6 in the design doc records the error-handling contract that came out of the first round.

Requirements

If you have made any visual changes to the GUI. Make sure you have:

• Tested on iOS device
• Tested on Android device
• Tested on small-screen device (iPod Touch)
• Tested on large-screen device (tablet)

---

Note

Medium Risk
Prototype persists signing keys and can trigger real on-chain sends when used, but it is developer-gated and does not alter the shipping Phaze purchase path; mistakes in amount mapping or identity handling could still strand orders or keys.

Overview
Adds a developer-mode prototype for CTX’s spend-api alongside the existing Phaze gift card flow: anonymous secp256k1 pubkey register/login, JWT session handling with keys in encrypted account.dataStore, and HTTP clients for /me, /merchants, and /gift-cards.

From Gift Card Account Info, developers can connect (show pubkey, user, merchant count), order a fixed staging test card, pay via the normal send scene (chain/network → Edge wallet, native amount with ceiling rounding, native-only quotes), and poll card status until terminal (fulfilled / refunded) with faster polling until paid.

New modules: ctxSpendCrypto, ctxSpendAuth, ctxSpendApi, ctxSpendPurchase, ctxSpendTypes; PLUGIN_API_KEYS.ctxSpend in env; locales; design doc; Jest coverage for crypto, identity races, and payment/status helpers. Phaze reveal/copy behavior is unchanged; CTX UI is gated on developer mode and env config.

^{Reviewed by Cursor Bugbot for commit 867f3b5. Bugbot is set up for automated code reviews on this repo. Configure here.}

[j0ntz]

📸 Test evidence

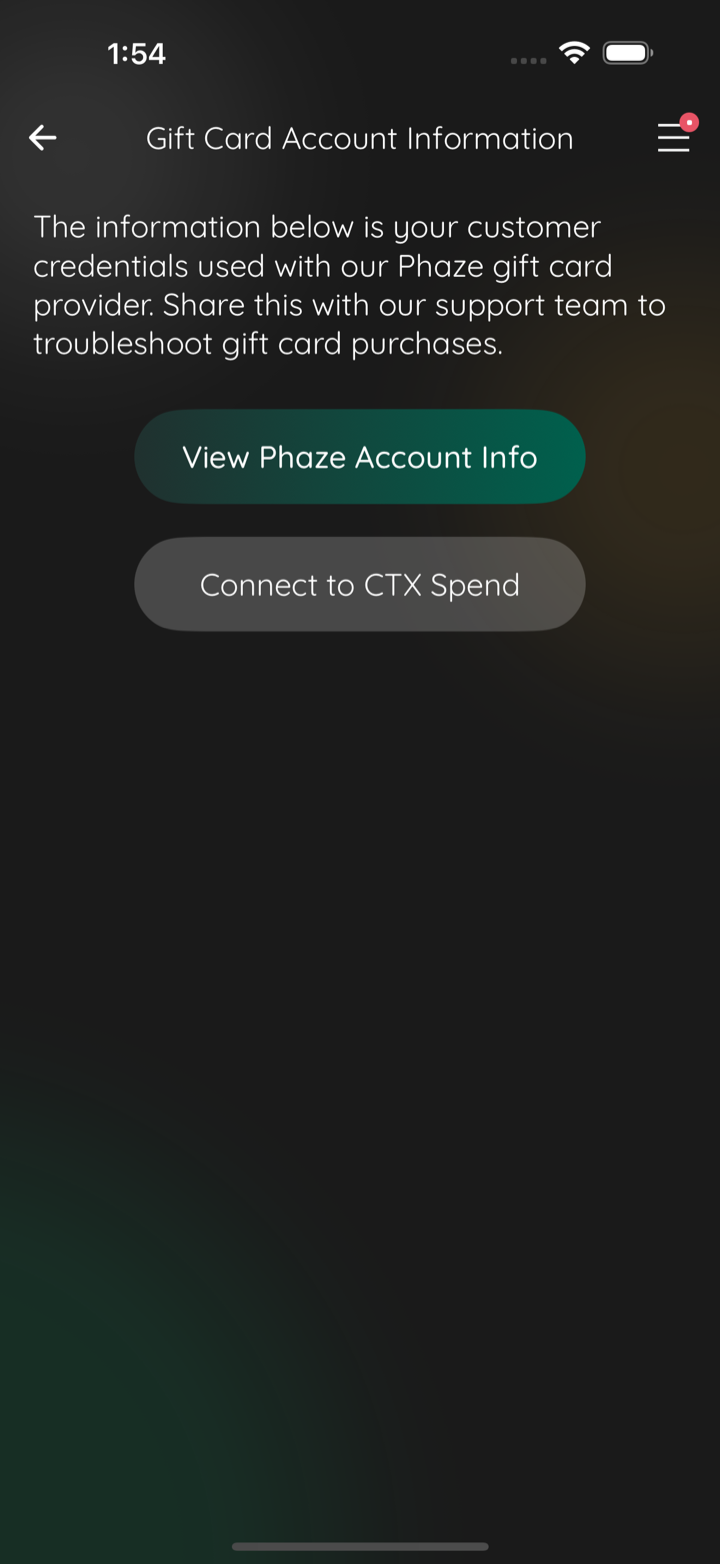

ctx before connect

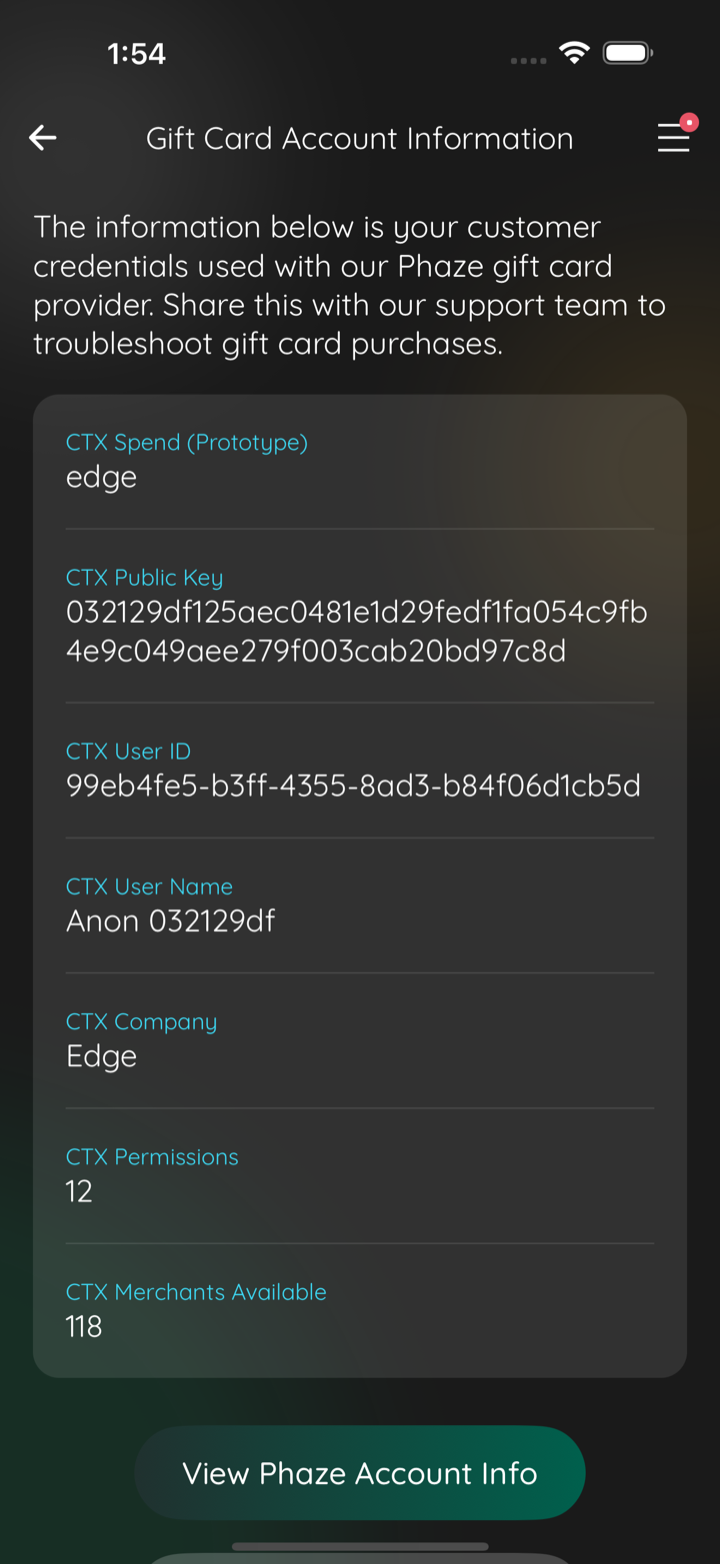

ctx authenticated

ctx persisted after relaunch

Captured by the agent's in-app test run (build-and-test).

[chatgpt-codex-connector]

You have reached your Codex usage limits for code reviews. You can see your limits in the Codex usage dashboard.

[j0ntz]

📸 Test evidence (after review fixes)

ctx persisted after relaunch

Captured by the agent's in-app test run (build-and-test).

[j0ntz]

📸 Test evidence: end-to-end gift card purchase (Amazon USD 0.01, paid on Sepolia)

ctx connected

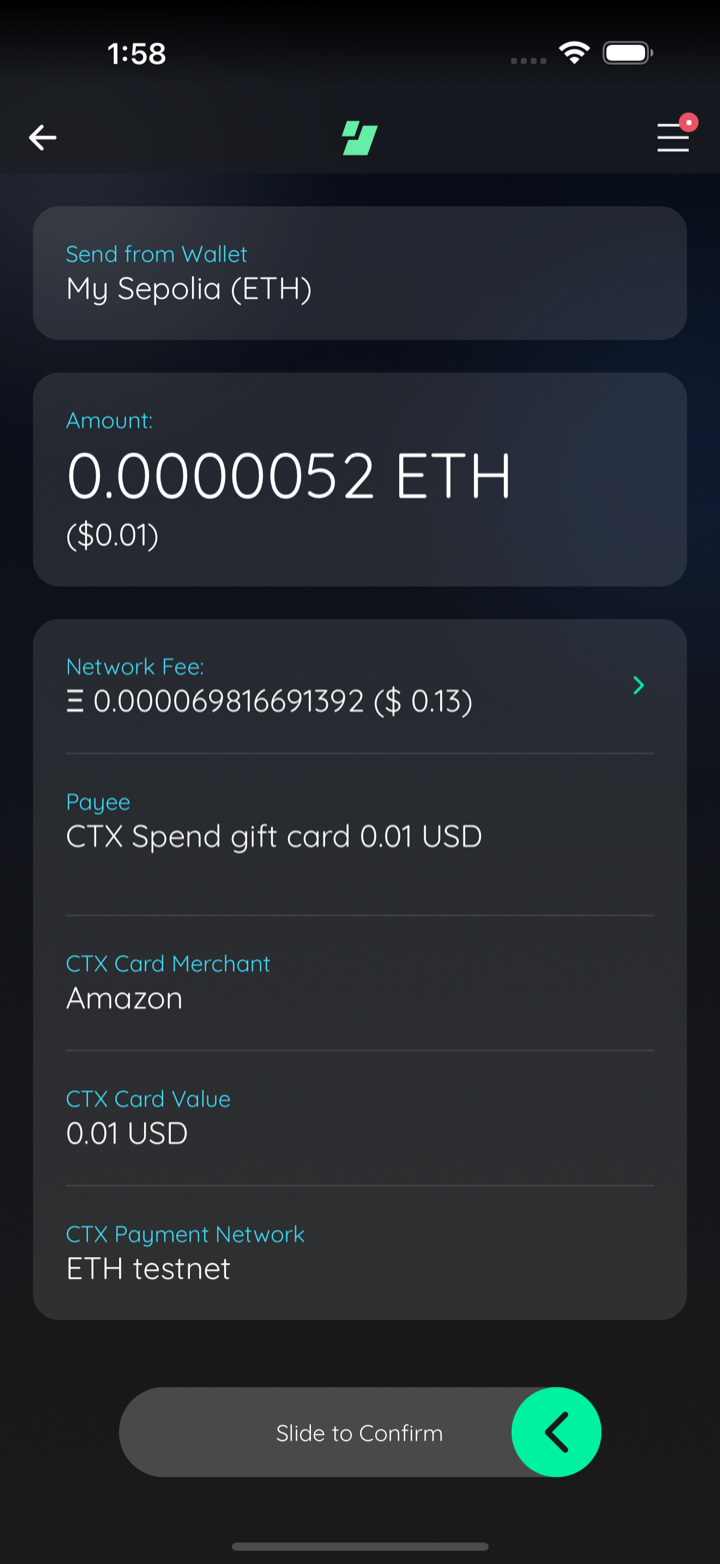

ctx send prefilled

ctx card after payment

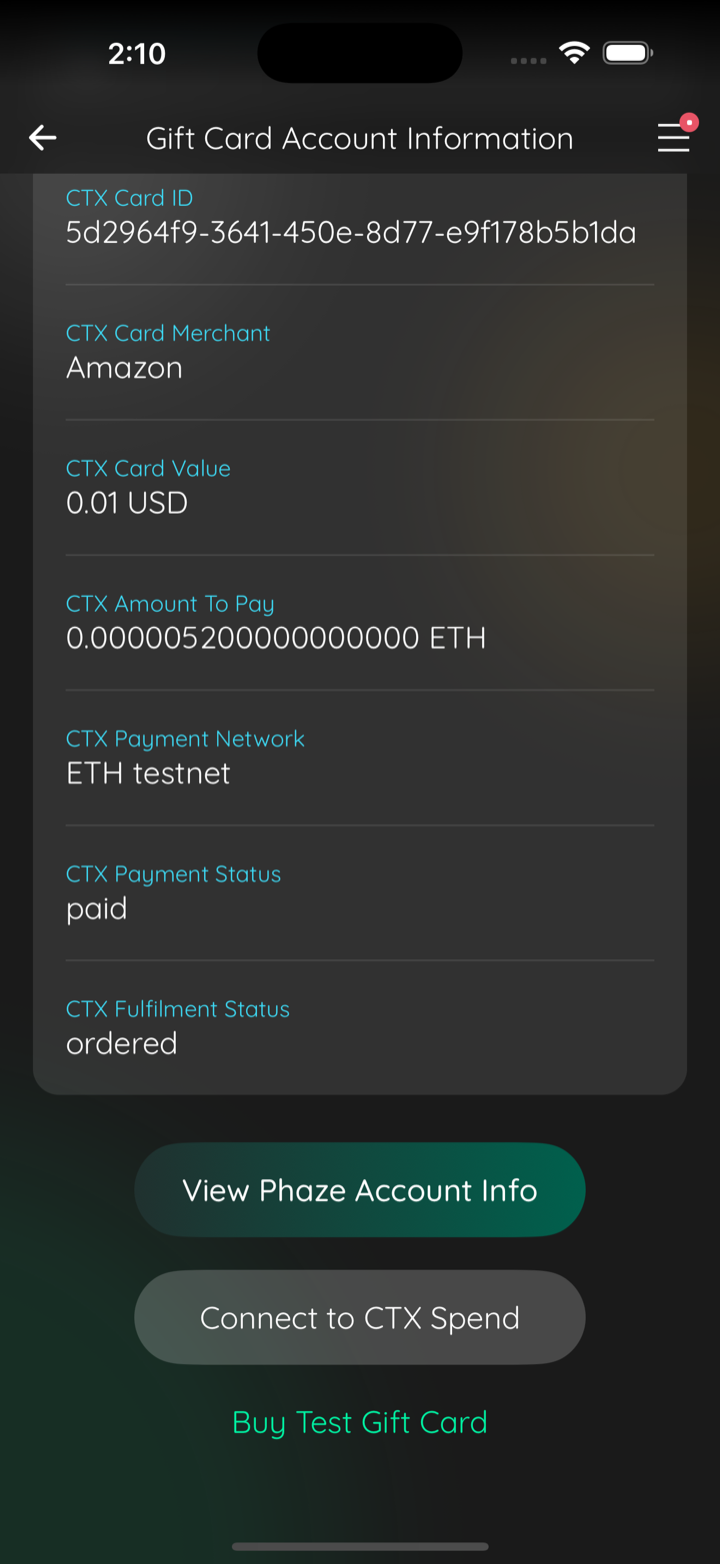

ctx card paid

Captured by the agent's in-app test run (build-and-test).

[j0ntz]

📸🪓 Test evidence: CTX mainnet chain map, status machine, redemption links

🪓 Hack-forced evidence: pinned the card query's displayStatus to 'fulfilled' and injected placeholder redeemUrl/barcodeUrl, since CTX staging never fulfils a card; reverted, tree clean. Temporary uncommitted edit, reverted before commit; the marked frames prove the rendering, not the trigger.

ctx session

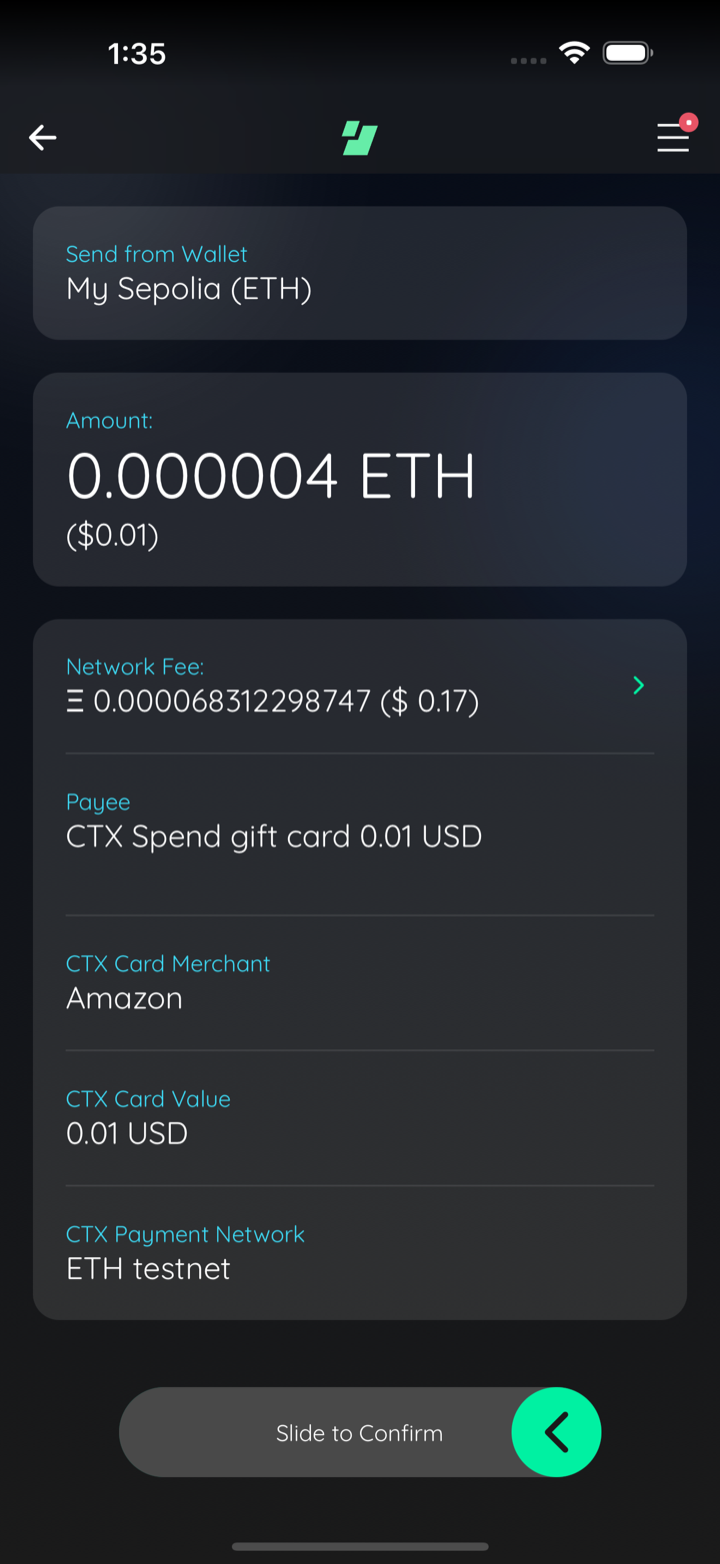

ctx payment locked

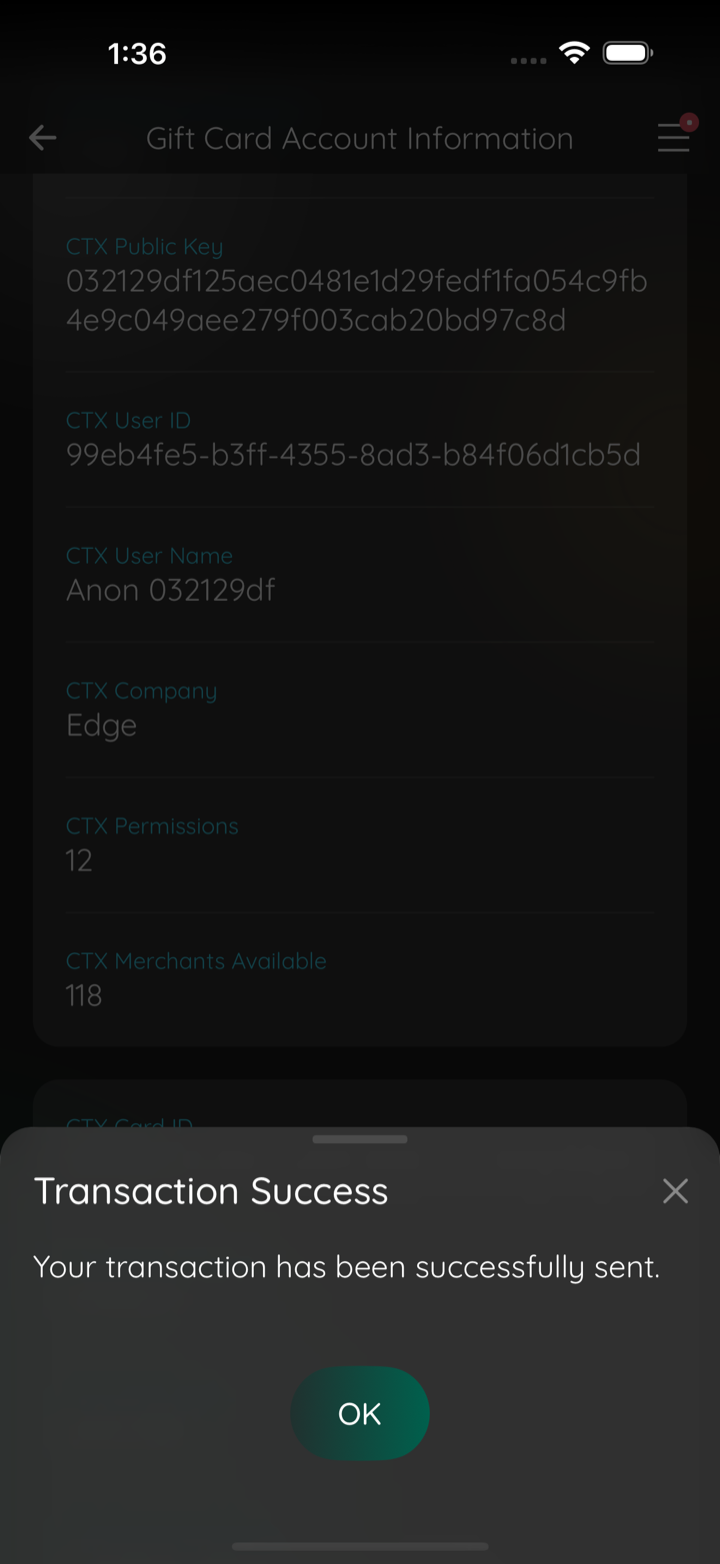

ctx payment sent

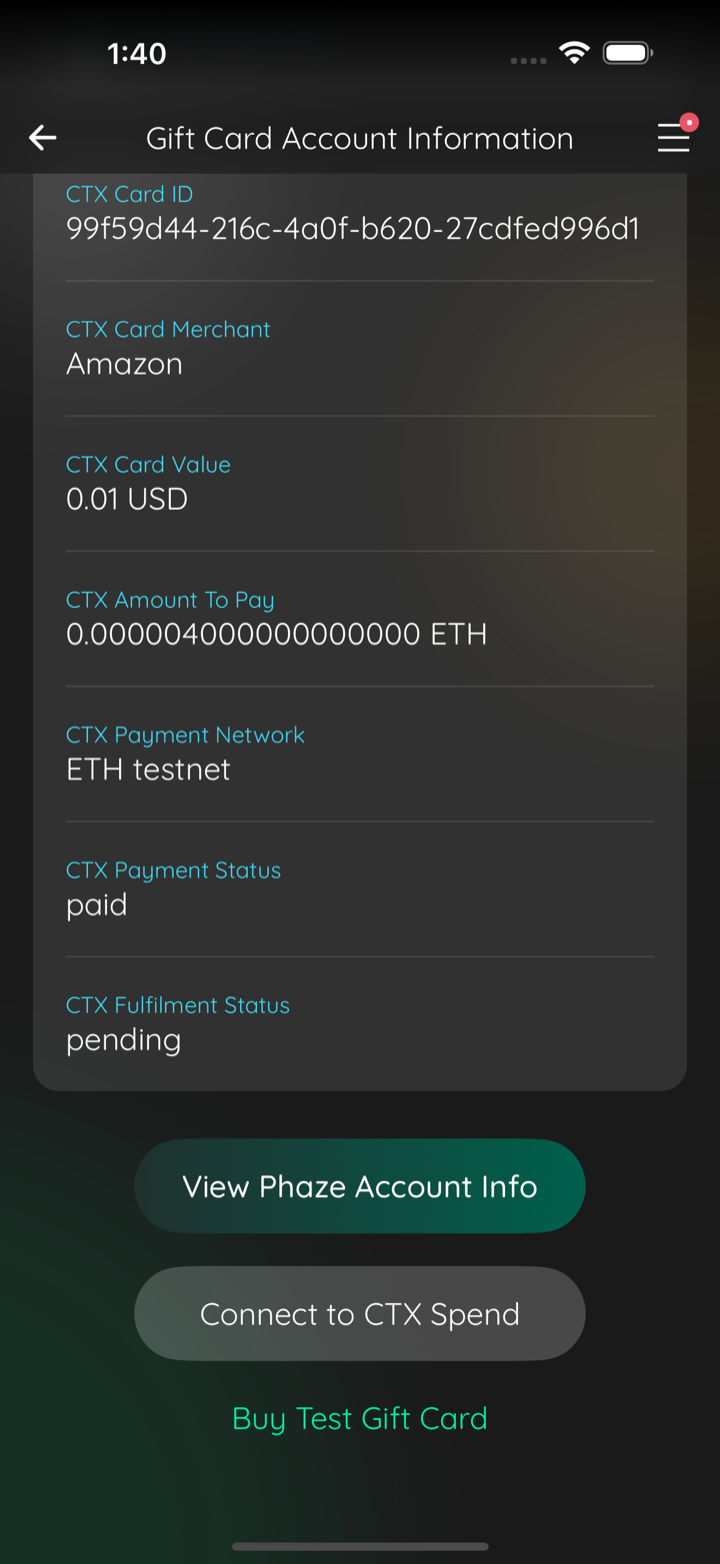

ctx card paid

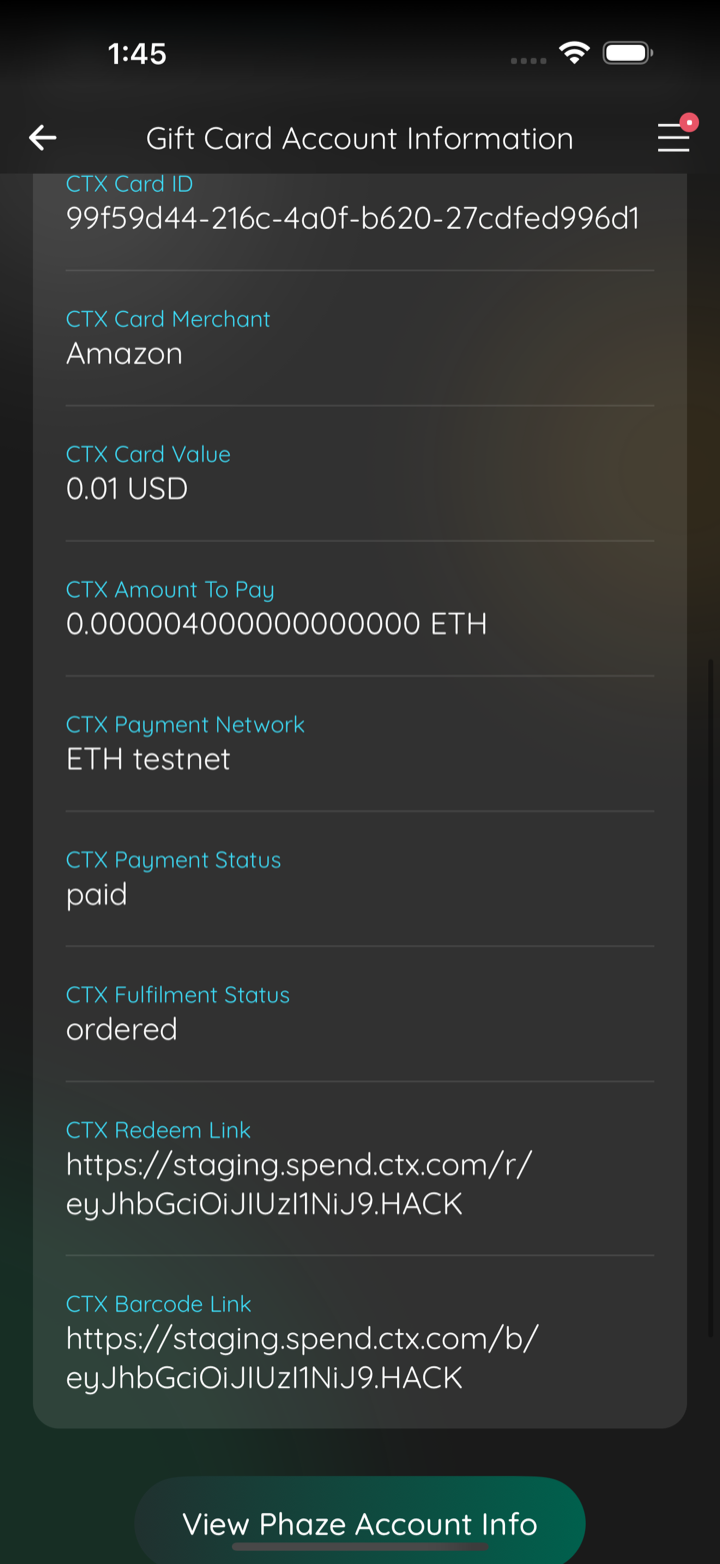

🪓 HACK-FORCED: redeem links

Captured by the agent's in-app test run (build-and-test).
