Description

Adds optional solid-colour and uploaded-image backgrounds to boards.

I built this for a sizeable Trello migration where board backgrounds are useful
visual landmarks across a large workspace. This follows the direction started
in #513 and extends it with image storage, dashboard and public rendering,
copy/template behaviour, and import support. I would coordinate the final PR
shape with @knom rather than silently replacing that work.

  • choose from Kan's existing colour palette or upload a background image;
  • preserve a valid imported hex colour without adding it to the manual palette;
  • render the same background on authenticated boards, public boards and board
    tiles while retaining the current patterned fallback for undecorated boards;
  • generate bounded 480/960/1920 WebP previews and lazily resolve only the visible
    board images;
  • copy board-owned image objects when creating a board from a board or template;
  • import Trello colour and image backgrounds through the built-in adapter,
    materialising remote images into Kan-controlled object storage;
  • use the existing board:edit permission and board menu/modal patterns.

The schema remains board-owned (backgroundColourCode and
backgroundImageKey), and API responses expose a discriminated background value
rather than storage keys or internal IDs. Replacement, removal, failed uploads
and failed copies have explicit object-cleanup paths.

I realise that decoration features have a noticeable effect on the interface
and may deserve a wider product discussion. The integration is deliberately
non-invasive: boards without a selected background retain Kan's current
patterned appearance, while teams moving from Trello can preserve the visual
landmarks they already use. The manual picker stays within Kan's existing
palette. I am open to constructive suggestions on the UX and boundaries.

This PR is intended to be considered together with the card-cover work in #605.
They are separate review units, but solve the same navigation and
personalisation problem on boards and cards respectively.

Screenshots

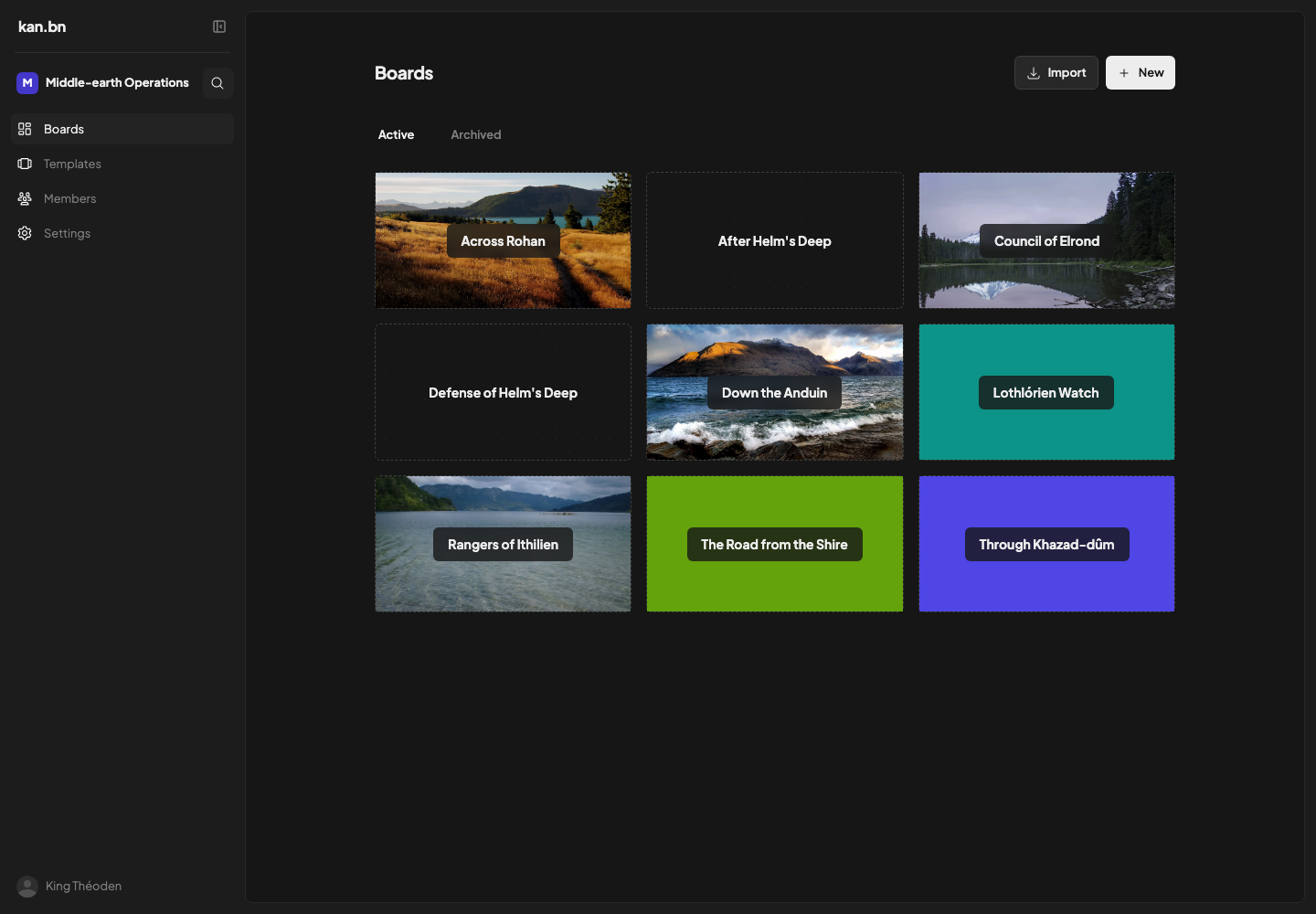

Board gallery:

Decorated board gallery

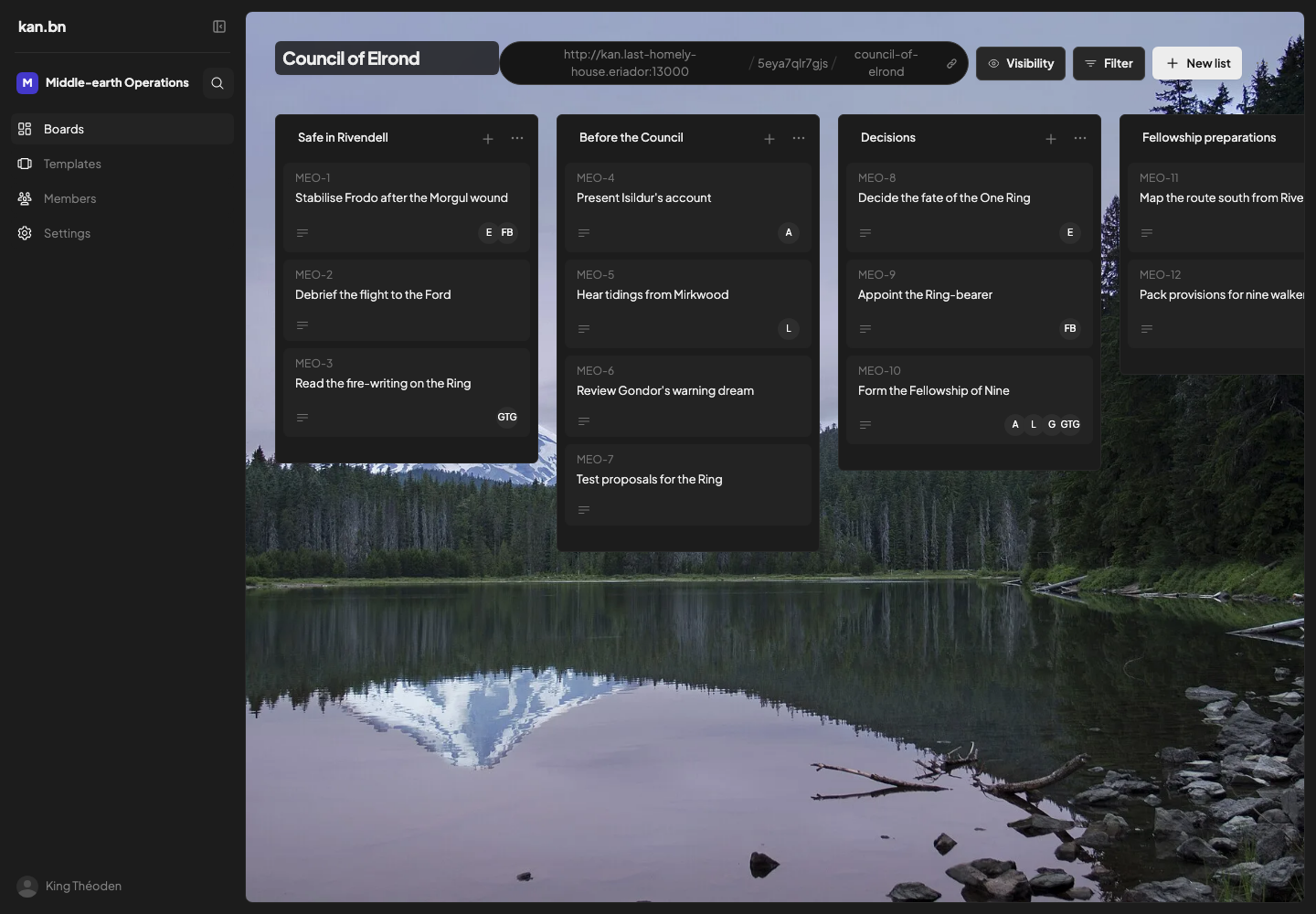

Decorated board:

Board image background

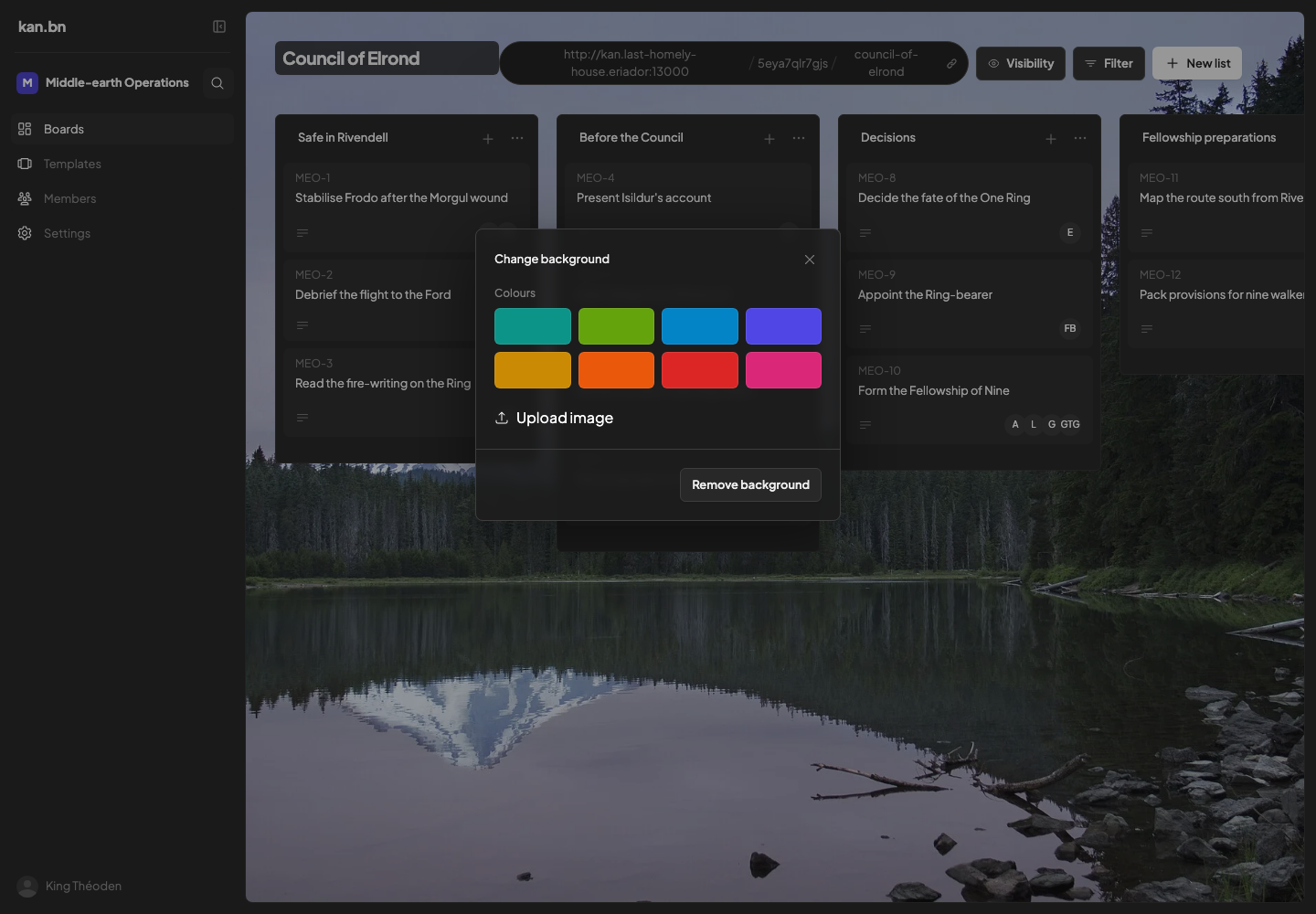

Background settings:

Board background settings

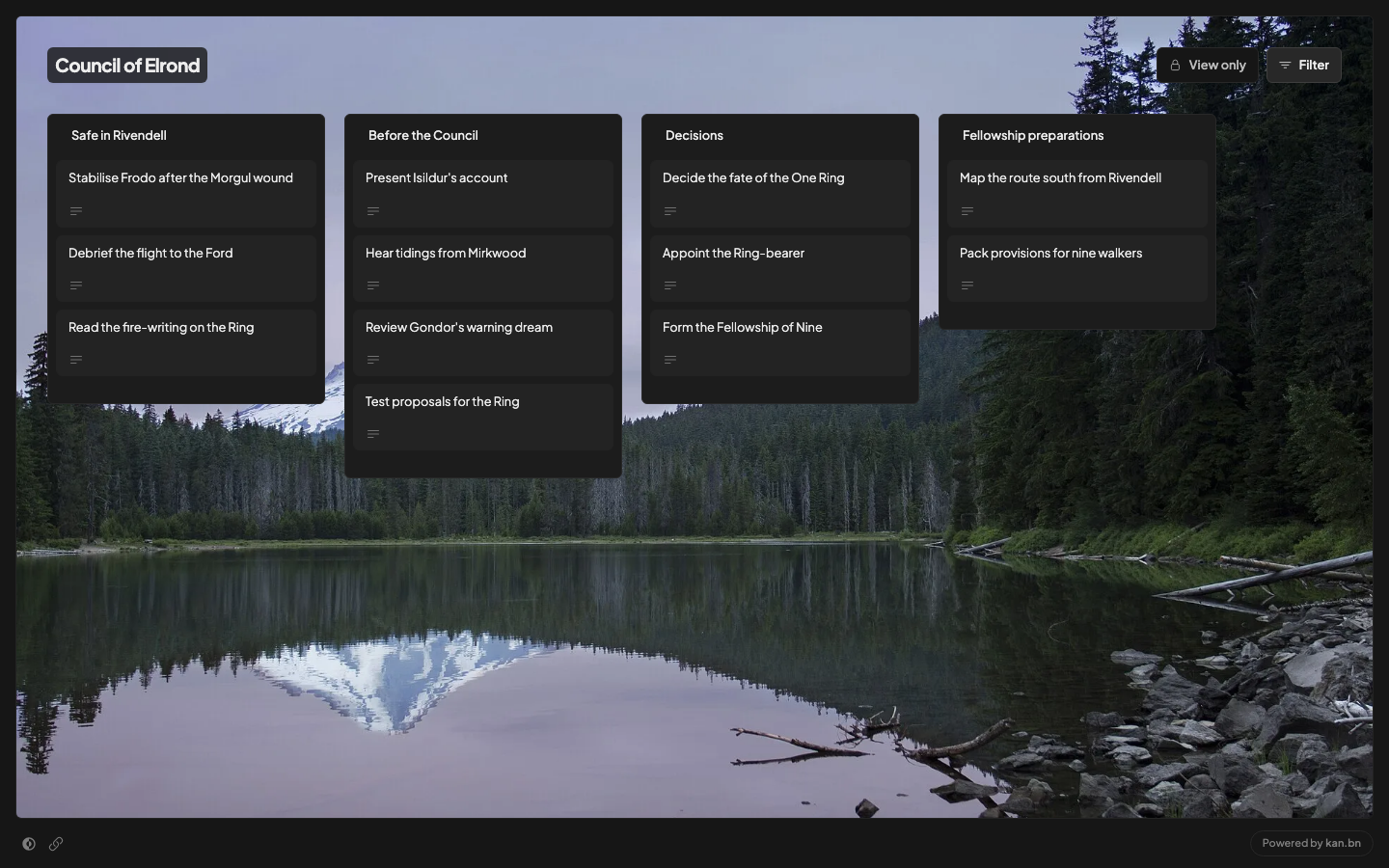

Anonymous public board:

Public board background

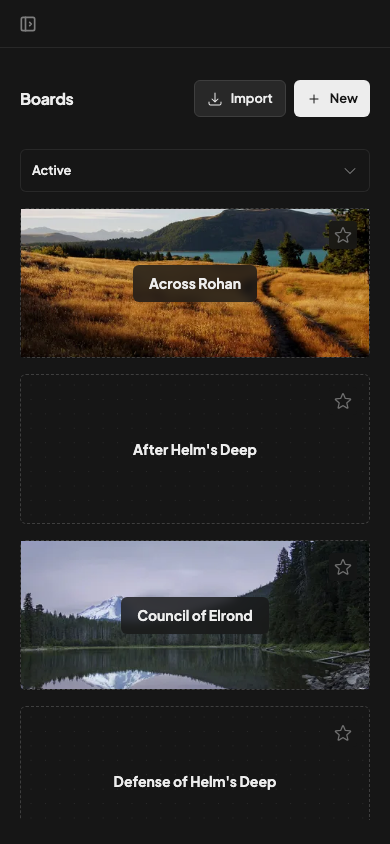

Mobile gallery:

Mobile board gallery

Verification

  • branch refreshed onto current upstream/main
  • targeted API tests: 75 passed
  • targeted web tests: 3 passed
  • repository integration tests: 5 passed on isolated PGlite databases
  • API, DB and shared typechecks
  • web typecheck (blocked only by the two existing bootstrap.cjs errors;
    the branch removes the two board visibility errors present on upstream/main)
  • entirely new source/test files pass package ESLint and Prettier checks
  • self-hosted Playwright background scenario
  • synthetic dark-theme desktop, mobile, settings and public screenshots
  • screenshot and source-asset checksums verified

Type of change

  • Bug fix
  • Feature (requires an approved issue — see below)
  • Refactor / chore
  • Documentation

Checklist

  • I have linked the related issue below
  • My code follows the existing style and conventions
  • I have tested my changes locally
  • I have included screenshots for any UI changes

Linked issue

Part of #155

@bionicman
bionicman force-pushed the feat/board-backgrounds branch from b022bc9 to 8b17459 Compare September 15, 2026 16:14
Keep calendar view navigation and the board background in the shared board shell.
