🚀 C++ gRPC + Cassandra Dev Stack

A Docker + vcpkg starter stack for distributed C++ microservices — gRPC, Protocol Buffers, and Apache Cassandra, wired together and verified working.

This is a template, not a finished application: it gives you a working coordinator/worker architecture, vcpkg-based dependency management, multi-stage Docker builds, and a CI/CD pipeline that publishes to GHCR, with an example parsing pipeline standing in for whatever business logic you're actually building. It's a solid starting point for prototyping, learning, or bootstrapping a new service — it is not hardened for production as-is (no auth, no TLS, no tests yet — see Known Limitations / Roadmap).

📋 Table of Contents

Features
What's Inside?
Known Limitations / Roadmap
Using Prebuilt Images (Recommended)
Quick Start (Local Development)
VS Code Dev Container
Verify It Works
Use Cases
Configuration
Customizing for Your Project
Project Layout
Screenshots
Advanced / Production Deployment (Kubernetes / Minikube)
Troubleshooting
Contributing
License
Additional Resources

✨ Features


📦 Pre-built images on GHCR	No local compilation needed — `docker compose up -d` pulls ready-to-run images
🐳 Multi-stage Docker builds	~170–190MB final images, down from multi-GB dev images
🔧 vcpkg manifest mode	Identical library versions across every service, built once in a shared base image
⚡ gRPC + Protocol Buffers	C++17, generated stubs baked into the base image
🗄️ Apache Cassandra integration	Pre-configured schema and driver, wired up in `docker-compose.yml`
🖥️ Web UI for data inspection	`cassandra-web` on port 3000
🧑‍💻 VS Code Dev Containers	Full C++ toolchain + `gdb`, attached to the running stack
🔄 Automated CI/CD	GitHub Actions builds, validates, and publishes on every push/release
❤️ Health checks	Cassandra readiness gates coordinator/worker startup in Compose
🧩 Example implementation included	A distributed parsing pipeline with Cassandra storage, ready to run or replace

🔍 What's Inside?

This is a template with a working example, not a ready-made product:

Coordinator: an example gRPC server that distributes tasks to workers — replace with your own orchestration logic
Worker(s): example gRPC clients that fetch and parse data (via curl + libxml2) and write results to Cassandra (3 replicas by default) — replace with your own business logic
Cassandra: a pre-configured NoSQL store for results
Web UI: cassandra-web, for visualizing stored data
Infrastructure: a working Docker/CI setup around all of the above — see Known Limitations / Roadmap for what it doesn't cover yet

Architecture

                     ┌────────────────────┐
                     │      Browser       │
                     │  localhost:3000    │
                     └─────────┬──────────┘
                               │ HTTP
                               ▼
┌─────────────────┐   gRPC   ┌──────────────┐   gRPC   ┌──────────────┐
│  cassandra-web   │◄──CQL───┤  coordinator │◄────────►│    worker    │
│   (Streamlit)    │         │  :50051      │  (x3)    │  (x3 pods)   │
└────────┬─────────┘         └──────────────┘          └──────┬───────┘
         │ CQL                                                │ CQL
         ▼                                                    ▼
                     ┌─────────────────────┐
                     │      Cassandra      │
                     │  keyspace: parser   │
                     └─────────────────────┘

The coordinator hands out tasks over gRPC; workers pull a task, execute it (fetch + parse in the example implementation), write the result straight to Cassandra, and report completion back to the coordinator. Swap out what happens inside "execute it" and the rest of the architecture — service discovery, health checks, image builds, CI — keeps working unchanged.

Tech Stack & Versions

Pinned/observed from an actual build of this repo's docker/Dockerfile.vcpkg — check vcpkg.json and the workflow logs for the current resolved versions, since vcpkg's baseline moves forward over time:

Component	Version	Source
Base OS	`ubuntu:22.04`	`docker/Dockerfile.vcpkg`
gRPC	1.81.1	vcpkg port `grpc`
Protobuf	6.33.4 (protoc 33.4.0)	vcpkg port `protobuf`
Cassandra C/C++ driver	2.17.1	built from source, pinned in `docker/Dockerfile.vcpkg` (no official vcpkg port)
C++ standard	C++17	`coordinator/CMakeLists.txt`, `worker/CMakeLists.txt`
Package manager	vcpkg (manifest mode, `x64-linux` triplet)	`vcpkg.json`

Why use this?

Skip weeks of Docker/vcpkg/gRPC configuration
Start from a working multi-service architecture (includes a runnable example pipeline)
Prebuilt images mean no local C++ toolchain is required to try it
Learn multi-stage builds, vcpkg manifest mode, and GHCR publishing by example
Replace the example parsing logic with your own business logic when you're ready

🗺️ Known Limitations / Roadmap

Being upfront about scope: this is infrastructure and an example pipeline, not a hardened product. Specifically, as of now:

Security

No authentication/authorization on the gRPC services.
No TLS between coordinator/worker — channels are created with InsecureChannelCredentials.
No TLS to Cassandra, and docker-compose.yml ships a default CASSANDRA_PASSWORD=cassandra in plaintext (fine for local dev, not for anything internet-facing).

Reliability / data model

The coordinator's task queue is an in-memory std::vector (coordinator/coordinator.h) — it's lost on restart, and the coordinator can't be scaled to more than one replica without workers seeing inconsistent queues.
Cassandra runs as a single node with replication_factor: 1 (cassandra/setup.cql) and no data volume in docker-compose.yml — stored results don't survive docker compose down -v.
Of the 5 tables cassandra/setup.cql defines, only parsed_results is actually written to by the example worker code — the rest (task_requests, task_results, submitted_tasks, result_acks) are schema only.

Operations

No gRPC health-check protocol on coordinator/worker (only Cassandra has a container healthcheck).
No graceful shutdown — server->Wait() blocks indefinitely; in-flight tasks are lost on a restart/redeploy.
No structured logging, metrics, or tracing — just std::cout/std::cerr.
No retry/backoff strategy on the worker beyond a flat 1-second sleep when the queue is empty.

Testing

No unit or integration tests exist yet. .github/workflows/ci.yml validates that the stack builds and starts, not that it behaves correctly.

None of this blocks using the template to learn from or prototype with — it's exactly the kind of thing you'd expect to add as a project built on this template matures, and the list above should save you from having to rediscover it yourself.

📦 Using Prebuilt Images (Recommended)

docker-compose.yml is set up by default to pull ready-to-run images from GitHub Container Registry instead of compiling anything locally. Every push to main and every release rebuilds and republishes them via .github/workflows/publish-ghcr.yml.

docker compose up -d

That's it — no C++ compiler, no vcpkg, no waiting for grpc/protobuf/abseil/the Cassandra driver to build from source. Compose pulls ghcr.io/neuracollab/coordinator:latest and ghcr.io/neuracollab/worker:latest and starts the full stack (Cassandra, cassandra-web, coordinator, 3 worker replicas) in seconds.

Open the web interface at http://localhost:3000, and tear it down with:

docker compose down

If you're changing the C++ code and need to build the images yourself, see Quick Start (Local Development) below.

🚀 Quick Start (Local Development)

Use this path when you're modifying the coordinator/worker C++ code and need to build the images yourself, rather than pulling the prebuilt ones above.

1. Prerequisites

Docker with Compose v2 (docker compose)
No local C++ toolchain, CMake, or vcpkg installation required — everything compiles inside the base-vcpkg build in the next step

2. Build the shared base image

First time, or whenever vcpkg.json changes:

docker build -f docker/Dockerfile.vcpkg -t base-vcpkg:latest .

This compiles the vcpkg manifest's dependencies once. It's the slow step (expect it to take a while the first time); Docker's layer cache makes every rebuild after that instant unless vcpkg.json changes.

3. Switch `docker-compose.yml` to local builds

In the coordinator and worker services, comment out the image: line and uncomment the build: block underneath it.

4. Bring the stack up

docker compose up --build

This builds coordinator and worker on top of base-vcpkg and starts Cassandra, cassandra-web, the coordinator, and 3 worker replicas.

5. Open the Web Interface

http://localhost:3000

6. Tear it down

docker compose down

🧑‍💻 VS Code Dev Container

A .devcontainer/ is included, wired to the same docker-compose.yml. Open the repo in VS Code and choose Reopen in Container.

Included out of the box:

C++ IntelliSense (ms-vscode.cpptools)
CMake Tools (ms-vscode.cmake-tools)
Docker support (ms-azuretools.vscode-docker)
A container attached to the builder stage (full toolchain + gdb), connected to the running Cassandra instance

🧪 Verify It Works

docker compose ps

Expected: cassandra reports healthy, and coordinator / worker are Up.

docker compose logs coordinator worker

🎯 Use Cases

Learning: understand how C++ gRPC microservices talk to each other and to Cassandra, without first having to figure out how to wire vcpkg, multi-stage Docker, and CI together yourself
Prototyping: quickly test a distributed system idea — coordinator/worker fan-out, a shared Cassandra store, a web UI — without setting up infrastructure by hand
Production base: extend it with your own C++ business logic and ship it through the same CI/CD pipeline that already builds, validates, and publishes images on every push
Teaching: demonstrate modern C++ containerization (vcpkg manifest mode, multi-stage builds, GHCR publishing) end to end, with a runnable example instead of slides

Example applications you can build on top of this template:

Data parsing and ETL pipelines (the example included in this repo)
Real-time data processing pipelines
Distributed task queues
Microservices with shared state in Cassandra
High-performance backend services
Web scraping and content aggregation systems

Development Workflow

A typical loop for extending this template looks like:

Edit C++ source under coordinator/ or worker/ (or both).
Rebuild and run locally via the Quick Start (Local Development) path.
Verify with docker compose ps / docker compose logs, same as in Verify It Works.
Push to a branch and open a PR — .github/workflows/ci.yml builds the images and brings the full stack up in CI to catch regressions.
Merge to main — .github/workflows/publish-ghcr.yml rebuilds and republishes coordinator and worker to GHCR automatically, so docker compose up -d on the prebuilt-images path picks up the change for anyone who pulls again.

⚙️ Configuration

Everything below is currently hardcoded in source or in docker-compose.yml — there's no environment-variable layer wired in yet. This table exists so you know exactly what to change and where, rather than pretending it's already configurable:

Setting	Current value	Where it's defined
Cassandra contact point	`cassandra`	hardcoded in `worker/worker.cpp` (`cass_cluster_set_contact_points`)
Cassandra native port	`9042` (driver default)	not overridden anywhere in code
Coordinator gRPC listen address	`0.0.0.0:50051`	hardcoded in `coordinator/main.cpp`
Worker → Coordinator address	`coordinator:50051`	hardcoded in `worker/main.cpp`
Worker replica count	`3`	`docker-compose.yml` (`deploy.replicas`)
Web UI host port	`3000`	`docker-compose.yml` (`cassandra-web` port mapping)

.env.example at the repo root sketches out env vars for a future config-driven setup (COORDINATOR_PORT, WORKER_PORT, CASSANDRA_SEEDS, etc.), but none of them are actually read by the running services yet. Wiring these up via getenv/argv is a good first customization — see below.

🛠️ Customizing for Your Project

Replace the example parsing logic: edit coordinator/main.cpp / coordinator/coordinator.cpp and worker/main.cpp / worker/worker.cpp to implement your own business logic instead of the example fetch-parse-store pipeline.
Update proto definitions: modify proto_files/task.proto, then rebuild the base image so the generated stubs pick up the change: docker build -f docker/Dockerfile.vcpkg -t base-vcpkg:latest .
Add vcpkg dependencies: edit vcpkg.json, then rebuild the base image the same way.
Change the Cassandra schema: edit cassandra/setup.cql to match your data model.
Remove the example parsing code: if your project doesn't need HTTP fetching or HTML parsing, drop the curl/libxml2 usage in worker/page_fetcher.* and worker/html_parser.*, and the corresponding entries in vcpkg.json.

📦 Project Layout

vcpkg.json               # manifest: grpc, protobuf, abseil, curl, libxml2
docker/Dockerfile.vcpkg   # shared base image: toolchain + vcpkg deps + generated proto stubs
coordinator/Dockerfile    # multi-stage build -> minimal runtime image
worker/Dockerfile         # multi-stage build -> minimal runtime image
proto_files/              # .proto definitions (example: task distribution)
coordinator/              # example gRPC server (task distribution logic)
worker/                   # example gRPC client (parsing + Cassandra write)
cassandra/                # Cassandra init scripts (setup.cql)
docker-compose.yml        # local dev stack
.github/workflows/        # CI/CD: docker-compose validation + auto-publish to GHCR
.devcontainer/            # VS Code development environment
kubernetes/               # K8s manifests for production deployment
CONTRIBUTING.md           # dev environment setup + PR guidelines
LICENSE                   # MIT

🖼️ Screenshots

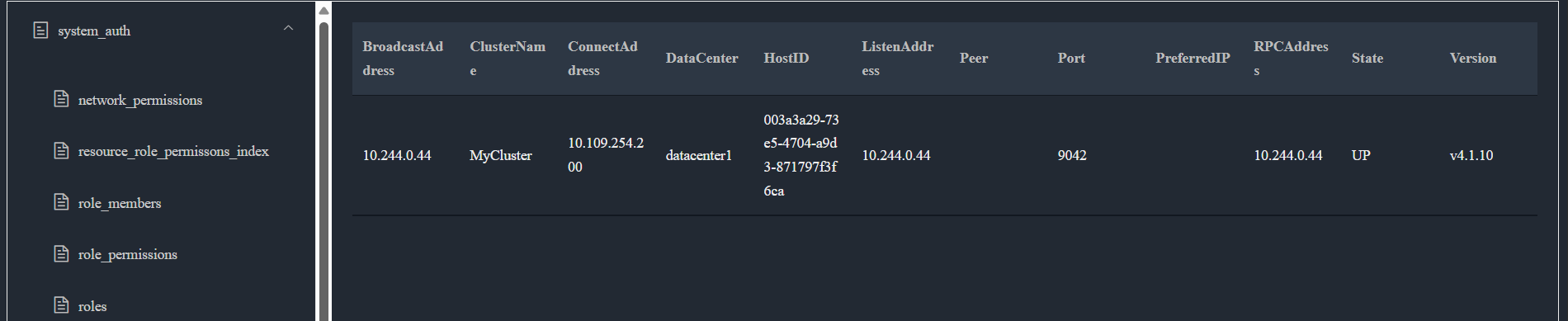

Cassandra Web UI

This screenshot is from the cassandra-web UI reachable at http://localhost:3000 after docker compose up -d.

There's currently no screenshot of the docker compose ps output itself — see below if you'd like to add one.

📸 Adding/Updating Screenshots

Run docker compose up -d and wait for docker compose ps to report healthy.
Take a screenshot of whatever you're documenting (terminal output, a browser window, etc.) and save it under assets/.
Reference it in this README with the full raw URL (https://raw.githubusercontent.com/neuraCollab/cassandra-grpc-dev/main/assets/<file>.png), not a relative path — relative paths only render on GitHub's own file viewer, not when this README is copied/shared elsewhere.
Commit: git add assets/ && git commit -m "docs: update screenshots".
Recommended resolution: 1200×675 (16:9).

Advanced / Production Deployment (Kubernetes / Minikube)

Running on Kubernetes (via Minikube for local cluster testing) is supported for production-like deployments, but it's not the recommended path for day-to-day development — Minikube's RAM footprint and slower startup add friction that docker compose avoids.

Prerequisites

💡 Windows users: Use WSL2 for best experience.

Automated

chmod +x start.sh
./start.sh

This builds the base + service images, generates gRPC code, starts Minikube, loads images into the cluster, creates the Cassandra init config, and deploys everything under kubernetes/.

Manual

# 1. Build the shared base image and service images
docker build -f docker/Dockerfile.vcpkg -t base-vcpkg:latest .
docker build -f coordinator/Dockerfile -t distributed_parser-coordinator ./coordinator
docker build -f worker/Dockerfile -t distributed_parser-worker ./worker

# 2. Start Minikube
minikube start

# 3. Load images into Minikube
minikube image load distributed_parser-coordinator:latest
minikube image load distributed_parser-worker:latest

# 4. Create Cassandra init config
kubectl create configmap cassandra-setup --from-file=setup.cql=./cassandra/setup.cql

# 5. Deploy everything
kubectl apply -f ./kubernetes/ --recursive

# 6. Access the Web UI
kubectl port-forward deployment/cassandra-web 8083:8083
# → Open http://localhost:8083

Screenshots

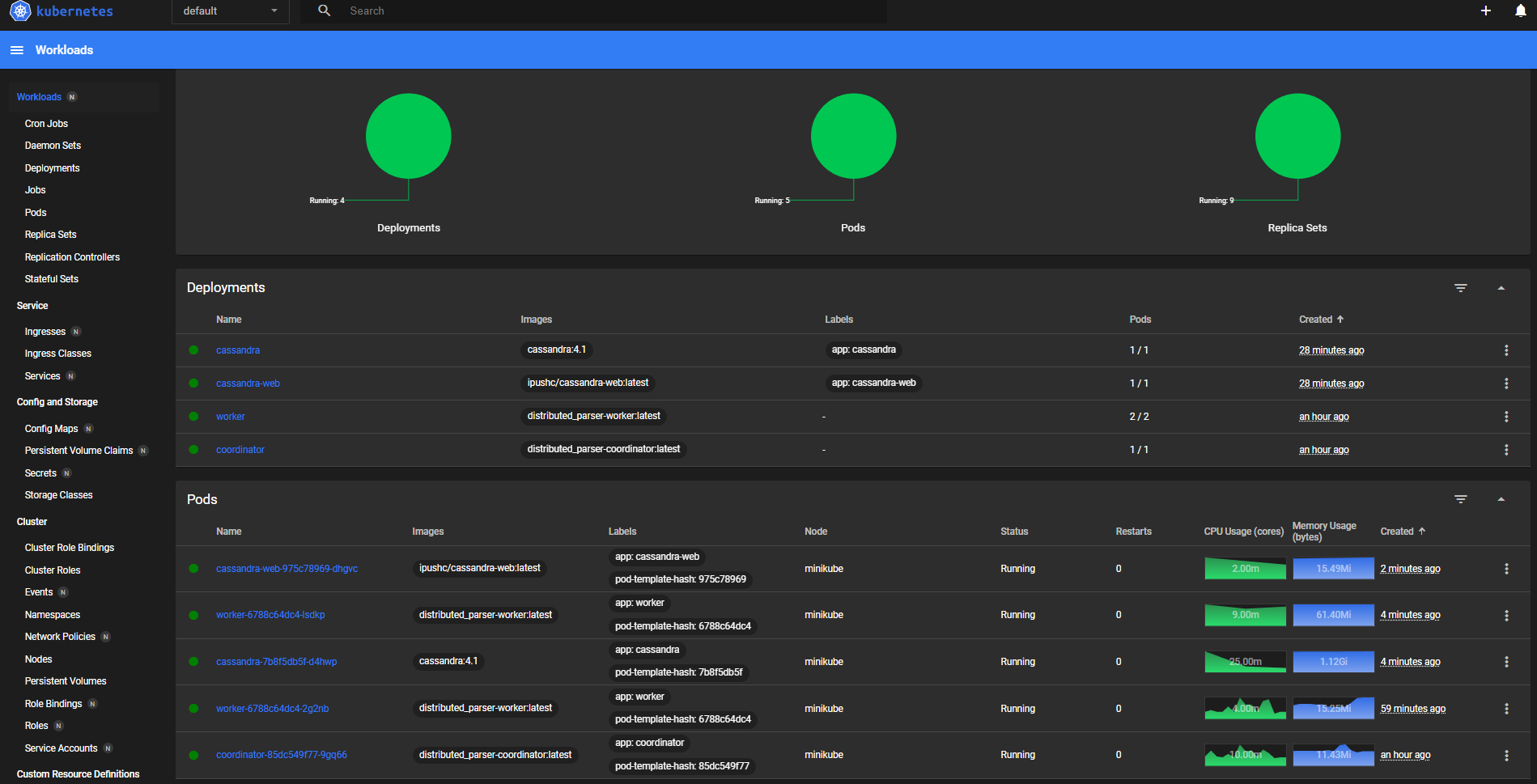

📌 Tip: Run minikube dashboard to monitor pods, services, and logs in real time.

Verify

kubectl get pods

NAME                                      READY   STATUS    RESTARTS   AGE
cassandra-xxxxx                           1/1     Running   0          2m
cassandra-web-xxxxx                       1/1     Running   0          2m
coordinator-xxxxx                         1/1     Running   0          2m
worker-xxxxx                              1/1     Running   0          2m

📬 Troubleshooting

Cassandra runs out of memory → reduce limits (see kubernetes/cassandra/cassandra-deployment.yaml for the K8s path, or add resource limits under the cassandra service in docker-compose.yml for local dev).
gRPC/proto issues → verify .proto files are in proto_files/ and rebuild base-vcpkg so the generated stubs pick up the change.
A service fails to build against base-vcpkg:latest → make sure you built it first — Compose does not build it automatically since it's referenced only via FROM, not as a compose service.
Port 3000 is busy → change the host-side port mapping for cassandra-web in docker-compose.yml.
BuildKit cache issues / stale layers → docker builder prune.
The example parsing worker fails → check that curl/libxml2 are present in the base image (they're part of the vcpkg.json manifest); a rebuild of base-vcpkg after any vcpkg.json edit usually fixes it.

Resource requirements:

Minimum: 4GB RAM, 2 CPU cores
Recommended: 8GB RAM, 4 CPU cores (for 3 worker replicas plus Cassandra)

🤝 Contributing

Fork the repo
Create your feature branch (git checkout -b feature/amazing-feature)
Commit your changes (git commit -m 'Add some amazing feature')
Push to the branch (git push origin feature/amazing-feature)
Open a Pull Request

Opening a PR against main automatically runs .github/workflows/ci.yml, which builds coordinator/worker from your branch and brings the full stack up with docker compose — so a broken build or a service that fails to start shows up before review, not after merge.

See CONTRIBUTING.md for a more detailed dev environment walkthrough and code style notes.

📄 License

This project is licensed under the MIT License — see the LICENSE file for details.

📚 Additional Resources

proto_files/task.proto — the example service/message definitions
vcpkg.json — the dependency manifest
.github/workflows/publish-ghcr.yml — the GHCR publish pipeline
cassandra/setup.cql — the example Cassandra schema

Name		Name	Last commit message	Last commit date
.devcontainer		.devcontainer
.github/workflows		.github/workflows
ansible		ansible
assets		assets
cassandra		cassandra
coordinator		coordinator
docker		docker
kubernetes		kubernetes
proto_files		proto_files
scripts		scripts
worker		worker
.dockerignore		.dockerignore
.env.example		.env.example
.gitignore		.gitignore
CONTRIBUTING.md		CONTRIBUTING.md
LICENSE		LICENSE
README.md		README.md
docker-compose.yml		docker-compose.yml
makefile		makefile
manual_cmds.txt		manual_cmds.txt
start.sh		start.sh
vcpkg.json		vcpkg.json

Latest commit

History

Folders and files

Repository files navigation
